Large-Scale Data Migration with Apache Spark

Sooner or later every data platform needs a big move — a legacy database to the cloud, one warehouse to another, a schema overhaul. Done with hand-written scripts, these migrations are slow, fragile, and terrifying to restart after a failure halfway through. Apache Spark turns the job into a distributed, partitioned pipeline that processes massive datasets in parallel — and, done right, is idempotent and restartable.

Why Spark for migration

Spark's core advantage is parallelism. It splits the source into partitions and processes them across a cluster, so throughput scales with hardware rather than being bottlenecked on a single thread. It reads and writes almost anything — JDBC databases, Parquet, CSV, cloud object storage — and its DataFrame API expresses complex transformations clearly. For a multi-terabyte move, that's the difference between hours and days.

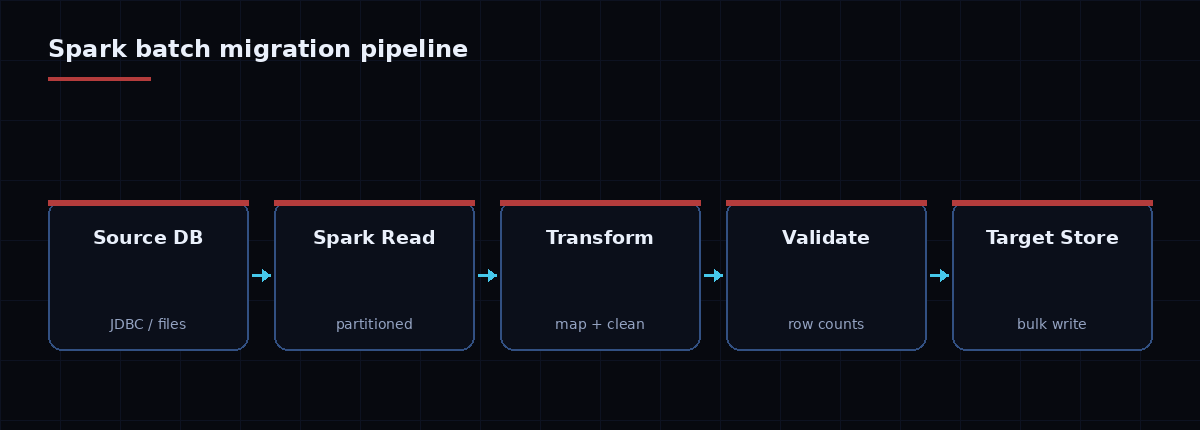

1. Read the source in partitions

The first rule of a big JDBC read: never pull a giant table down a single connection. Tell Spark how to partition the read by a numeric or date column, and it opens parallel connections, each fetching a slice.

Dataset<Row> src = spark.read()
  .format("jdbc")
  .option("url", sourceUrl)
  .option("dbtable", "orders")
  .option("partitionColumn", "id")
  .option("lowerBound", "1")
  .option("upperBound", "50000000")
  .option("numPartitions", "64")
  .load();

2. Transform and clean

Migrations are rarely a straight copy — schemas differ, data needs cleaning, types need mapping. The DataFrame API makes these transformations explicit and testable: rename and recast columns, deduplicate, fix encodings, and enrich. Keep transformations as pure functions on DataFrames so you can unit-test them on small samples before running the full job.

3. Validate — don't trust, verify

The scariest migration is one that "succeeded" but silently dropped or corrupted rows. Build validation into the pipeline, not as an afterthought:

• Row counts per partition, source vs target, must reconcile.
• Checksums or aggregates (sums of key numeric columns) compared end to end.
• Null and constraint checks on critical fields.
• Sample-level spot checks on a random subset.

A migration isn't done when it finishes — it's done when validation proves it's correct.

4. Make it idempotent and restartable

At terabyte scale, something will fail mid-run — a network blip, a node dying. If a restart re-inserts already-migrated rows, you've made things worse. Design for restart from the start: write in idempotent batches keyed by a natural ID (upserts, or write-to-staging-then-swap), and track which partitions have completed so a rerun skips them. This is exactly the systematic, custom-conversion approach we use to cut fragile manual migrations into repeatable, observable pipelines.

5. Tune for throughput

• Right-size partitions — too few underuses the cluster, too many adds overhead.
• Bulk-write to the target (batched inserts or native bulk loaders), never row-by-row.
• Watch for data skew — one giant partition stalls the whole job.
• Cache reused DataFrames; avoid recomputing expensive stages.

Key takeaways

• Spark parallelises big migrations so throughput scales with the cluster.
• Partition the source read, express transformations as testable DataFrame functions, and bulk-write the target.
• Build in validation and idempotent, restartable batches — a migration is done only when it's proven correct.
